Range of services

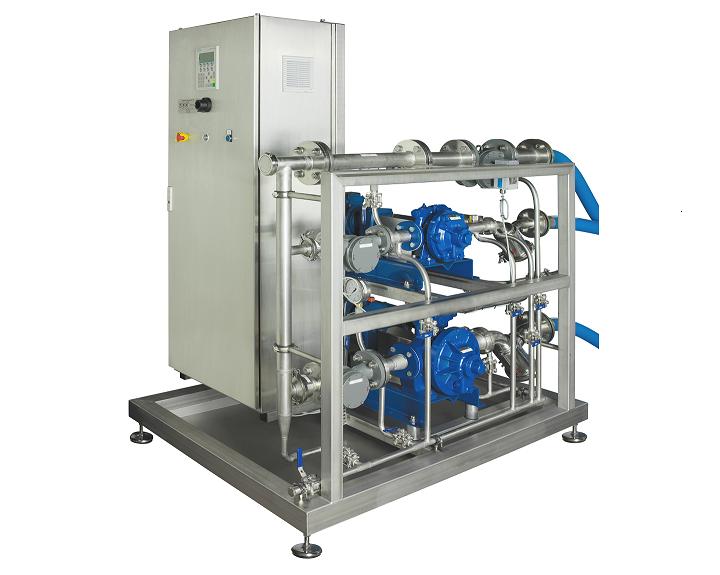

Manufacturing of a mixing station for vegetable oils, supplying online multi-unit packaging for the food industry. The installation of a production capacity of 20 m3/hr achieves high accuracy of the mixture throughout the BATCH. The perfect stability of the pump flow for this application allows us to use for servo-system, volumetric meters to ensure the perfect combination of components to be injected. A flow control ensures total real-time full consistency of the mixture after homogenization in a mixer unit online.

Know more

Mixing :

Know more

Injection :

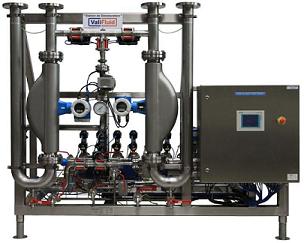

This online denaturing online station can inject up to eight different types of denaturants while having the possibility to adjust the TAV (Rate of alcohol content by volume) of the final mixture by controlling water injection. The percentage of injection can vary from 0.3 to 8% of the transfer lines up to 90 m3 / h. Atex zone installed, this equipment uses the power of a metrological complex set of sensors and data acquisition system to speed counting to ensure the calculation of titles and volumes of alcohol reduced to 20 °.

Know more

ValiSub® (The subcritical water extraction) :

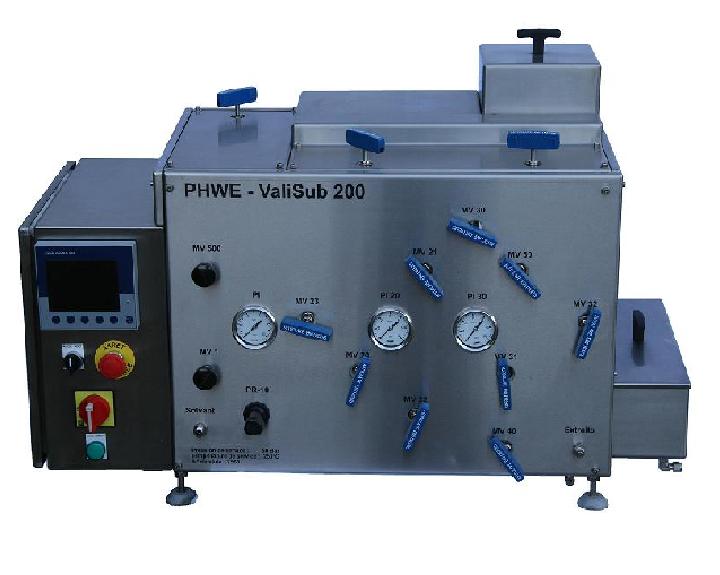

This development tool ValiSub® 200 extracts active ingredients from plant extracts. This unit of subcritical water extraction with a capacity of 200 cc can work up to 250 ° C under 725.5 PSI in flash mode and continuous. Used primarily in R&D it allows highlighting very good extraction yields with very short contact time.
Our experience in the engineering development of such processes allows us to imagine a design incorporating all the requirements relevant to the effectiveness of the extraction unit.

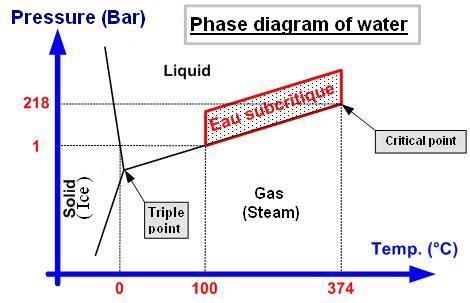

The principle: above 100 ° C, water is called subcritical when held in a liquid state under the influence of pressure. Under these conditions, the polarity decreases gradually with increasing temperature, around 250 ° C, it is close to that of ethanol. In this state, the water appears as a novel alternative, fast and efficient to extract active ingredients. While maintaining our economic and environmental constraints, this process is sterilizing and simple to implement.

- The principle -

This green compound produces no waste at all.Harmless and non-volatile, it gives a radically new approach to some of theproblems posed by industrial chemistry activities in general.

- Injection -

The pilot of the various organs is provided by a Siemens programmable logic controller. An operator panel placed in the control room connected to the remote controller to 250 meters performs the function of the man-machine interface. An electrical cabinet installed outside ATEX areas includes the controller, drives, emergency stop controls and functions manage / commands. A box placed on the skid in ATEX zone comprises a unit of I / O and remote display to see the smooth running of scheduled batch.
Placed in a corrosive atmosphere, all the components, piping and structure are made of 316L stainless steel.

- Mixing -

The API, equipped with an autonomous control command interface, is connected via a field bus to a centralized system of production. From programmed recipes it manages the operating speed of the pumps in order to respect the mixing ratios and the rate of production imposed by the packaging units. The publication of a report at the end of production or at the forced end of production can be edited in the interest of ensuring the traceability of the batch.
